| Power Mode | |
| Max. Average Power | 50 W |
| Min. Measurable Power | 0.5 W |
| Min. Meas. Power @3% accuracy | 1.5 W |
| Power Resolution | 10 mW |
| Time to measure and display | 4 sec |
| Power Calibration Uncertainty | ± 3% |
| Repeatability | ± 1% |
| Absorber Specs | |
| Aperture | 20 mm |
| Type | HPB |
| Absorber Spectral Range | 0.19 - 11 µm |
| Calibration Spectral Range | 0.19 - 2.1 µm, 2.94µm, 9 - 11 µm |
| Max Power Density (2) | 9 kW/cm² @40 W |
| Max Energy Density (2) | 5ms pulse width: 36 J/cm² 10µs pulse width: 1.2 J/cm² 10ns pulse width: 0.3 J/cm² |
| General Characteristics | |
| Max Allowed Probe Temperature | 70 |
| Power Supply | 3V (2 AA Batteries) |
| Battery runtime | 200 hrs |
| Cooling | Convection |
| Weight | 0.5 kg |

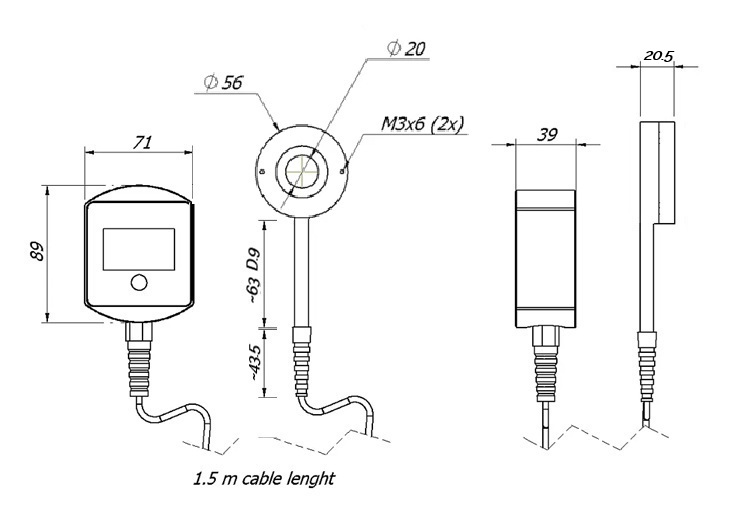

| Dimension | Ø 56 x 21 mm (sensor head) 95 x 71 x 46 mm (electronic) |
| Cable length | 1.2 m |
| Notes | |
| (1). Damage thresholds also depend on power level. Please see damage graphs for more details. | |
